How to Assemble Modular Parts?

PattyJuly 15, 2022

Multi-functional Support

Step 1
Lift the seat cushion and pull the ring-pull at the bottom of the seat as shown by the arrow.


Step 2
1)Assemble the multi-functional bracket.
2)Attach the multi-functional bracket to the frame according to the illustration. Fix the parts with screws and other accessories.



Pull-out Footrest

Step 1
Lift the seat cushion and pull the ring-pull at the bottom of the seat as shown by the arrow.



Step 2
1)Put the footrest parts together.
2)Install the plastic sleeve.
3)Attach the pull-out footrest to the seat. The installation is successful if the foot pedal can be pulled out and can be freely reversed.



Mesh Cushion

Step 1
Lift the seat cushion and pull the ring-pull at the bottom of the seat as shown by the arrow.



Step 2
Insert the mesh cushion into the seat from the front to the rear and then buckle the crossbar. If you want to remove the mesh cushion, just pull the handle outward.



Cup Holder

Step 1
Lift the seat cushion and pull the ring-pull at the bottom of the seat as shown by the arrow.



Step 2

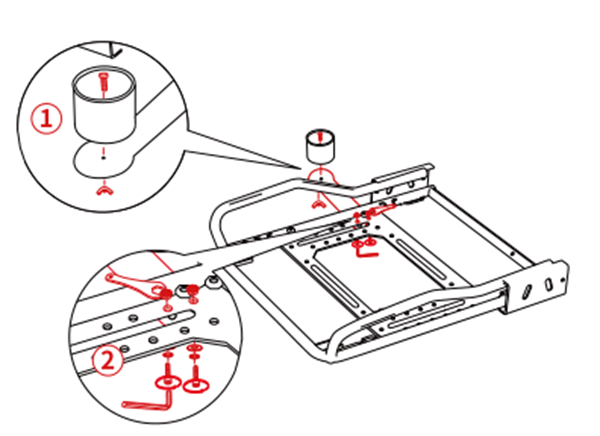

1)Put the cup holder parts together.
2)Install the cup holder on the frame and secure it with the screws.
